Overview

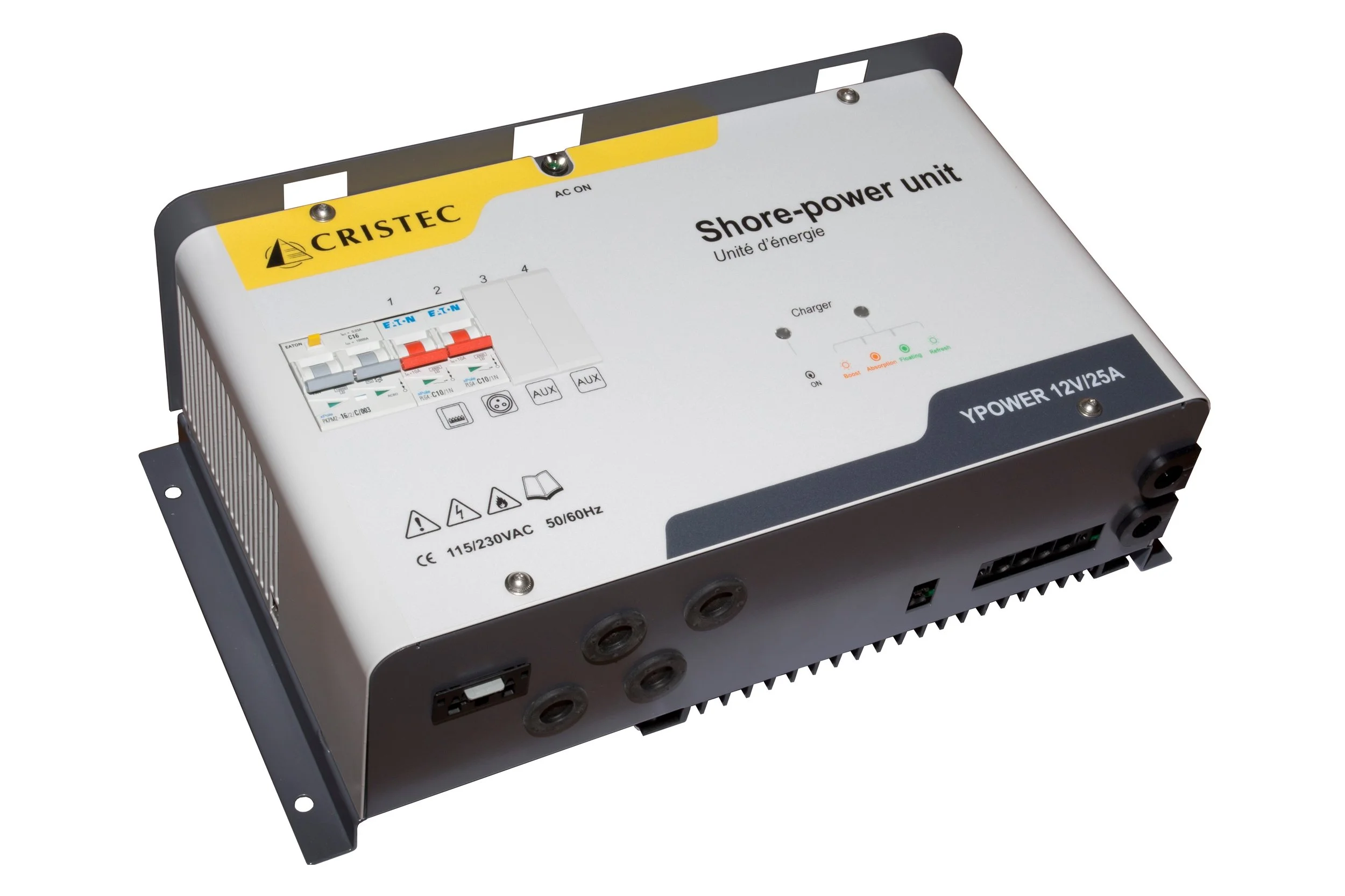

Vehicle Mains Power Charger Units

The Mains Power Charger Unit is unique in that it offers a single mains distribution box containing a pre-wired protection RCD, a row of MCBs for power distribution and a Cristec YPOWER grade battery charger. Simply install, connect mains, DC cable to the service battery and outlets to the MCBs and you have a complete AC and DC supply system installed.


Easy to Install Mains Distribution with Sophisticated Battery Charging

The Cristec Mains Power Charger Unit is ideal for vehicles, trailers and caravans that use mains power when available (hooked-up) and only require DC power for lights and pumps when on the road.

The Mains Power Charger Units are available in a range of charger outputs and MCB quantities to suit different battery banks and mains distribution needs.

The internal Cristec battery charger uses modern high frequency switchmode power control, which provides a 3-stage charge regime to quickly charge and then maintain a battery bank in a good fully charged condition.

The state-of-the-art internal charger can accept a wide input power supply range, have PFC (power factor correction) and modern HF (high frequency) switchmode technology to increase performance and efficiency. Rotary switch programming allows you to select the right charge curve for the battery type you have and all have 3 independent outputs (2 for the 10A unit) to charge separate battery banks such as the service battery and the engine start battery - ideal for vehicles kept in storage for long periods.




Cristec Mains Power Charger

Range



The Cristec Mains Power Charger Unit Range (12 Volt Charger Only)

To view Datasheets & Manuals, click on the Downloads tab above.

Model Charge Output (A) No. of Outputs No. of MCBs
YPOWER 12-16 2D 16 3 2
YPOWER 12-16 3D 16 3 3
YPOWER 12-16 4D 16 3 4
YPOWER 12-25 2D 25 3 2
YPOWER 12-25 3D 25 3 3
YPOWER 12-25 4D 25 3 4
YPOWER 12-40 3D 40 3 3
YPOWER 12-40 4D 40 3 4

Mains Input
From 85 to 265 VAC single-phase


Downloads

Downloads

Click on the links below - the document will open in a new window and can then be saved or printed.

Mains Power Units

Cristec YPOWER Mains Power Unit Datasheet
Cristec YPOWER Mains Power Unit (16A-40A)

Buy Now


Buy Now

If you would like to buy a mains power charger simply click the button below and you will be taken to our sister website Advance Yacht Systems to complete your purchase.


Enquire


Enquire

Please contact us if you would like more information or would like to discuss your requirements further. You can call us on 01794 523900 or fill in the form below.
