Vehicle Power Inverters

The Studer power inverter is connected to a vehicle mounted 12V or 24V battery and converts the DC power into 230V AC power. The AJ series of power inverters from Studer provide a pure sine wave output with extremely high efficiency. There is a range of different sizes to meet your specific power needs and they are available in 12V and 24V input voltages.

High Performance and Efficiency

Studer power inverters are well known for their high build quality and superior performance. Using Low Frequency Switch Mode technology, they are very power efficient using less battery power and have a healthy 200% overload capacity with a maximum load up to short circuit.

Comprehensive Features

  • High and steady efficiency
  • Outstanding overload capabilities
  • Digital regulation and control by microprocessor
  • Electrical supply to any type of appliance
  • Full internal protection
  • Stand-by level adjustable from a very low threshold
  • Battery lifetime optimization (B.L.O.) function
  • 5 year warranty

The AJs in 12V and 24V DC are certified in accordance with the ECE-R 10 standard.

Victron Inverters

We can also provide a range of Victron inverters. Please contact us for more information.

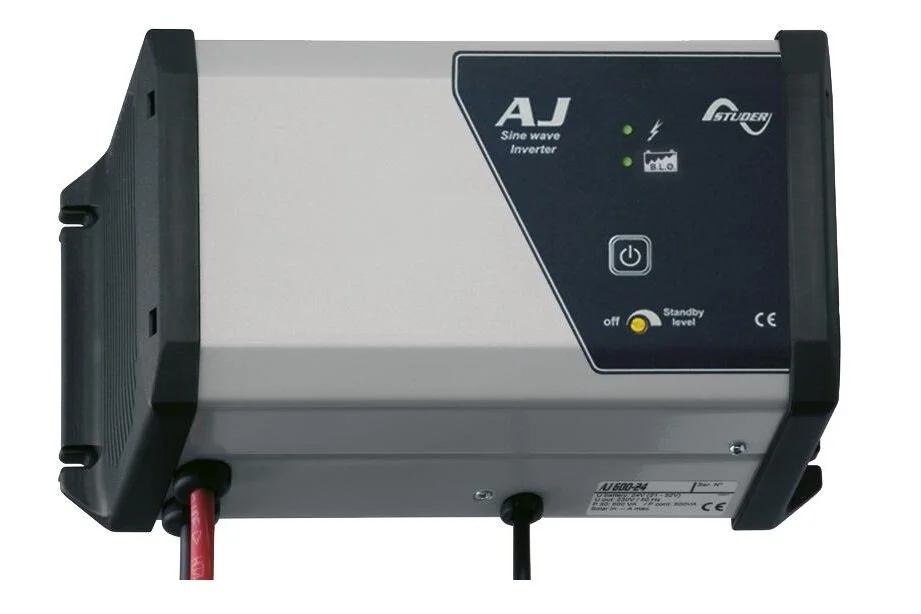

Studer AJ Inverter

Victron Inverter


AJ Inverter Range

To view Datasheets & Manuals, click on the Downloads tab above.

Model Inverter Power VA (30 min) Inverter Peak Power VA (5 sec) Voltage
275-12 275 450 12
500-12 500 1000 12
1000-12 1000 2200 12
2100-12 2100 5000 12
350-24 350 650 24
600-24 600 1200 24
1300-24 1300 2800 24
2400-24 2400 5200 24

All AJ series power inverters are also available in 120 VAC / 60 Hz - use (-01) suffix.
Units purchased with Solar regulator option enable simple connection of solar panel on roof of vehicle to recharge battery via the power inverter's built-in solar regulator - use (-s) suffix.



Click on the links below - the document will open in a new window and can then be saved or printed.

Studer - All Products

Studer Catalogue

Studer Inverters

Studer AJ Series Datasheet
Studer AJ Series User Manual

Buy Now

Buy Now

If you would like to buy an inverter simply click the button below and you will be taken to our sister website Advance Yacht Systems to complete your purchase.



Please contact us if you would like more information or would like to discuss your requirements further. You can call us on 01794 523900 or fill in the form below.
