Overview

Vehicle DC-DC Converters

The Studer MDC and MDCI ranges of DC-DC converters are used to step up or step down a DC voltage, depending on model. Some of the units can also be used to charge one battery bank from another, in the same way as using a modern two stage charge cycle. The DC-DC converter output is stable regardless of input voltage changes and can be used as a power supply to produce a stable DC voltage without a nominal input change.


Isolated or Non-Isolated and Power Supplies

The DC-DC Converter comes in two versions, isolated or non-isolated. On the non-isolated version, the negative connection is continuous through the unit. On the isolated version there is no continuous connection at all between input and output - it is galvanically isolated. Our DC-DC Converters have the added feature that they produce a stable output voltage. If the supply voltage was to drop due to the battery becoming discharged, the output voltage remains correct (the converter is transferring power). So, critical devices do not start to misbehave or switch off when engines are started - they work as long as is technically possible. The benefit of stable output voltage can be enjoyed even without stepping the voltage up or down; we supply same voltage units e.g. 12/12 or 24/24 for the purpose of simply providing a stable power supply.

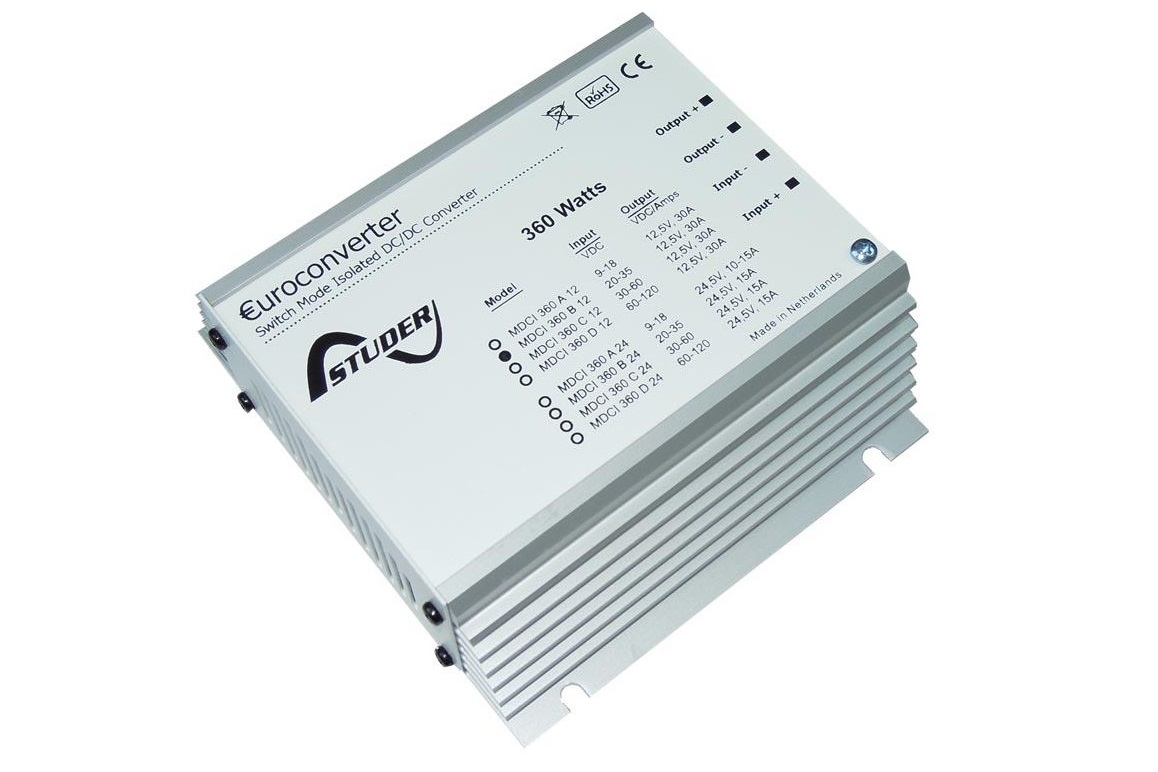

Studer DC DC Converter

Studer DC DC Converter

Range



The Studer DC-DC Converter Range

To view Datasheets & Manuals, click on the Downloads tab above.

Model Input Voltage (VDC) Output Voltage (VDC) Output Current (A) Rated Power (W)
MDC 1224-7 9-18 24.0 7 170
MDC 2412-5 18-35 13.2 5 65
MDC 2412-8 18-35 13.2 8 105
MDC 2412-12 20-35 13.5 12 160
MDC 2412-20 20-35 13.8 20 275
MDC 2412-30 20-35 13.8 30 415
MDCI 100 A/B/C/D 12.5 / 24.0 8 / 4 100
MDCI 200 A/B/C/D 12.5 / 24.0 16.5 / 8 200
MDCI 360 A/B/C/D 12.5 / 24.0 30 / 15 360
MDCI 360 A24 Charger A/B/C/D 27.6 13 360

Note: For the MDCI Range the input and output voltage options are specified at time of order.
The letters refer to the following voltages:
A = 9-18 VDC (nominally 12V)
B = 20-35 VDC (nominally 24V)
C = 30-60 VDC (nominally 48V)
D = 60-120 VDC (nominally 72V)
So, for example, if you wish to step down 24V to 12V and the device you wish to power uses 15A, then select MDCI 200 B12.


Downloads

Downloads

Click on the links below - the document will open in a new window and can then be saved or printed.

Studer DC-DC Converters

Studer MDCI & MDC Series Datasheet
Studer MDCI & MDC Series User Manual

Buy Now


Buy Now

If you would like to buy a DC DC converter simply click the button below and you will be taken to our sister website Advance Yacht Systems to complete your purchase.


Enquire


Enquire

Please contact us if you would like more information or would like to discuss your requirements further. You can call us on 01794 523900 or fill in the form below.
