Overview

Vehicle AGM Batteries

When using batteries as a source of stored power for service functions, you need to consider they will be subject to different operational regimes than when used as a vehicle engine start battery. AGM technology from Rolls has proven to be very tolerant of excessive discharge and has very high performance and long life.


High Performance and Long Life

Rolls AGM (Absorbed Glass Mat) 12 volt deep cycle VRLA (Valve Regulated Lead Acid) batteries featuring high reserve capacity, long cycle life and low internal resistance. They are the smart choice for demanding professional, recreational and off-grid deep discharge applications. Designed and built differently than automotive starting batteries, Rolls batteries use more lead, heavier plates and other proprietary materials enabling them to deliver more power and capacity over many life cycles like heavy duty traction batteries and yet they also have superb engine cranking capabilities like starting batteries. Rolls AGM batteries are able to survive very deep discharge with excellent recovery, are maintenance free and do not vent gas in normal operation. They are ideal for use in enclosed environments like vehicles and remote cabins.


Real Results Prove the Cost Benefits

The Rolls battery range is perfectly designed for our mobile power systems duties. The fact Rolls batteries make excellent start batteries and yet also serve very well as deep discharge traction batteries appears to be a contradiction in traditional battery terms. This is possible because they employ VRLA technology with very high grade lead paste and advanced AGM grid plate designs. Essentially what this does is ensure that the discharge process which produces the electricity and results in the change from lead to lead sulphate is efficiently reversed in the recombination process that we know of as re-charging. We have many examples of Rolls AGM batteries suffering total depletion on stored vehicles and recovering fully with no measurable damage.



Rolls AGM Battery

Rolls AGM Battery

Range



The Rolls Battery Range - Red Series

To view Datasheets & Manuals, click on the Downloads tab above.

Model Battery Capacity (Ah @ C20) Size (L x W x H mm) Weight (kg)

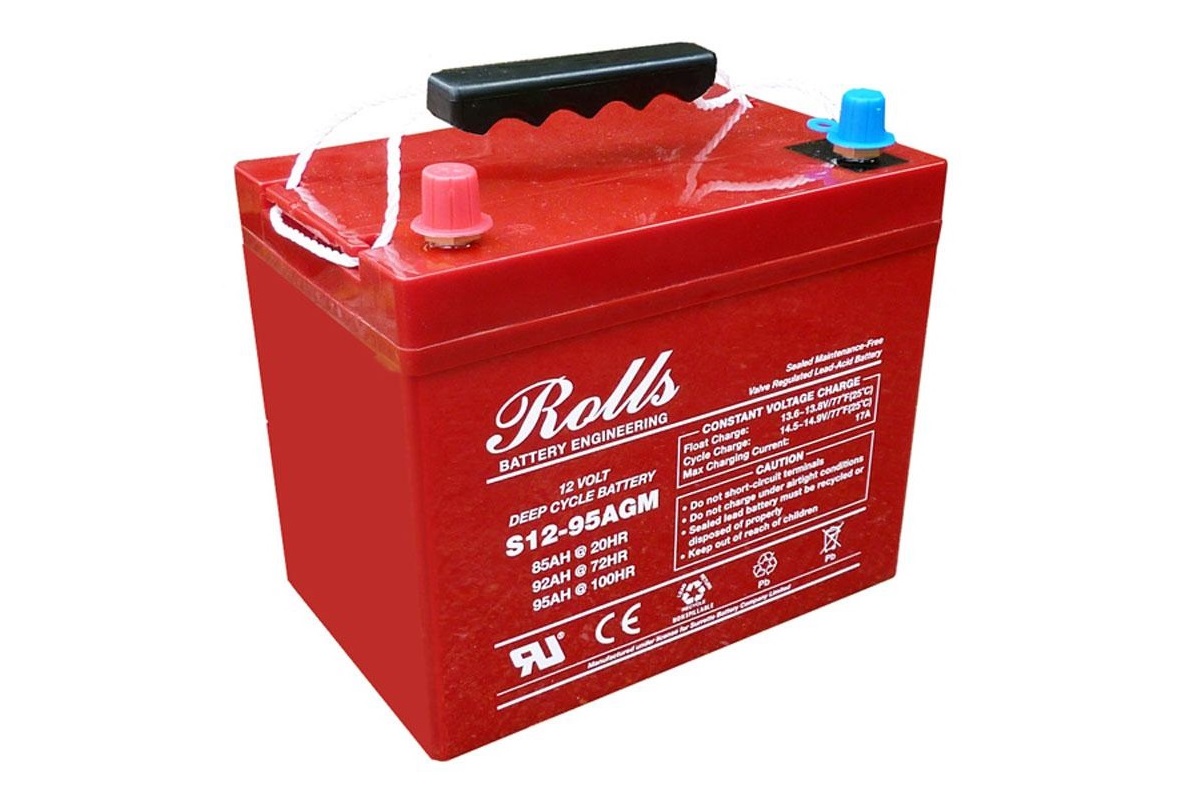

S12-95AGM 85 260 x 169 x 237 25
S12-116AGM 105 307 x 169 x 215 30
S12-128AGM 115 328 x 172 x 236 33
S12-160AGM 145 341 x 173 x 309 44
S12-230AGM 210 530 x 209 x 218 61
S12-240AGM 215 381 x 178 x 371 60
S12-290AGM 260 521 x 269 x 224 78


The Rolls Battery Range - Series 2

To view Datasheets & Manuals, click on the Downloads tab above.

Model Battery Capacity (Ah @ C20) Size (L x W x H mm) Weight (kg)
R12-80AGM 80 260 x 169 x 237 23
R12-100AGM 100 307 x 169 x 215 27
R12-110AGM 110 328 x 172 x 240 30
R12-200AGM 200 522 x 240 x 240 56
R12-260AGM 260 522 x 268 x 240 73
